Scopes FX | a vectorscope for OBS Studio

Scopes FX shader pack uses ReShade post-processing injector to employ its effects. ReShade is open-source and available to download at https://reshade.me website.

Scopes FX is...

• invisible to viewers!
• GPU accelerated.
• unique in every viewport.
• shortcut activated (1, 2, 3...)

Installation instruction:

First, go to ReShade website and download ReShade.

Then install ReShade to OBS Studio location (e.g. C:\Program Files\obs-studio\bin\64bit\obs64.exe).

Select Microsoft® DirectX® 10/11/12 API option.

Uncheck all packages download and click next.

Do not skip! Standard effects are required. Other packages may affect performance.

Now install Scopes FX shader pack to the same location (e.g. C:\Program Files\obs-studio\bin\64bit\).

When prompted, replace all files (click Yes to All).

Usage:

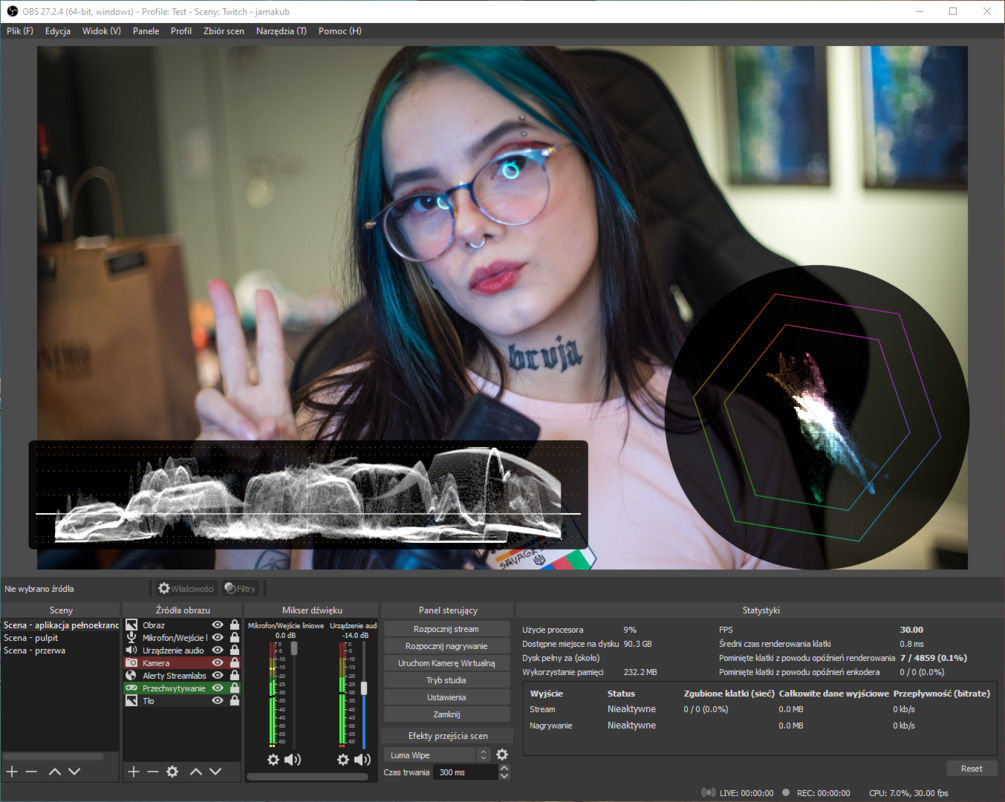

Use number keys 1, 2, 3, 4, 5 to toggle each individual scope, in every OBS preview window, independently. Scopes are invisible to the viewers.

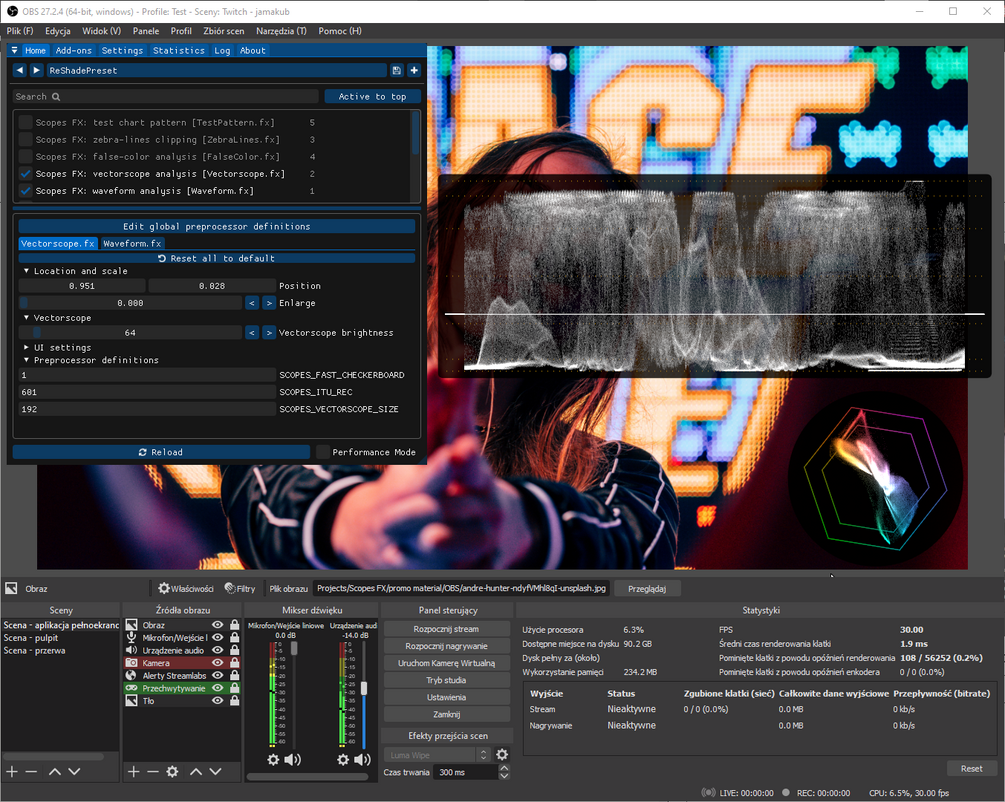

You can adjust various options and position using ReShade main menu. Toggle with home button, or on some keyboards fn+left arrow.

Right-click on the effect to assign different shortcut key. You can also reorder effects by dragging.

FAQ:

Effects are turning ON every time I start OBS, how to disable them?

• Open ReShade menu with home button. Toggle OFF Performance mode. Uncheck all the effects. Toggle Performance mode back ON.

How do I uninstall ReShade from OBS Studio?

• Go to ReShade installation location (e.g. C:\Program Files\obs-studio\bin\64bit\) and remove dxgi.dll file.

How do I completely remove ReShade and Scopes FX from OBS Studio?

• Beside above, also remove ReShade.ini, ReShade.log files and reshade-shaders folder.

Compatibility:

Scopes FX shader pack with ReShade works on Windows operating system.

7-Zip SFX module was used to package the Scopes FX shader bundle. 7-Zip is licensed under the GNU LGPL license and available to download at http://7-zip.org website.
